Installing DriveKey Wii Mod-Chip
Remember that to play DVD-R discs with Wii ISO backups on your
console you need to install one of the Wii Mod Chips on your Wii otherwise it will not play the copied DVD
as an original discs. Find out more about Mods and playing backup /
copied games at Wii-ModChips.com
Now of all the available Wii mod0chips the DriveKey is by far the most easy to install. Also DriveKey modchip works on absolutely all versions of the console, including the ones with epoxy covering the DVD drive chip and the ones with cut wires that Nintendo introduced to make installing mods near impossible.

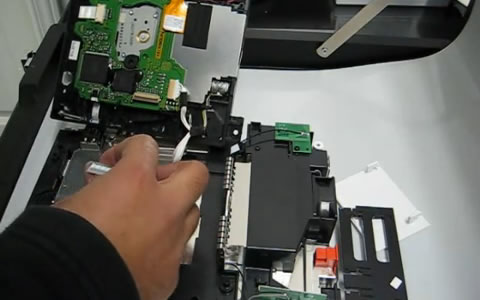

Now to install DriveKey in Your Wii carefully open the console, and unplug the DVD cable

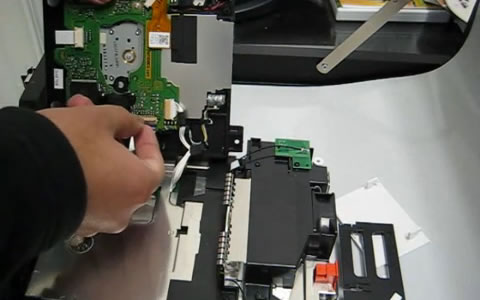

Carefully lift the DVD drive up and disconnect the ribbon cable that connects it to the motherboard, by pushing the clip up. The cable will slide out easily.

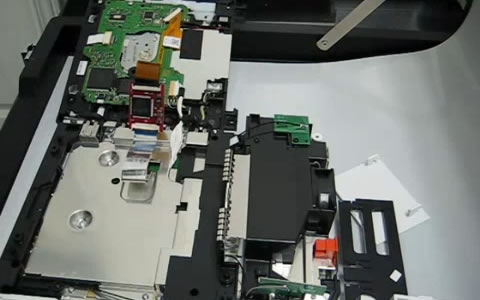

Now plug the cable coming from DVD in to the top slot and the one going to Wii motherboard in to the bottom slot marked with [Wii] (see the image at the top)

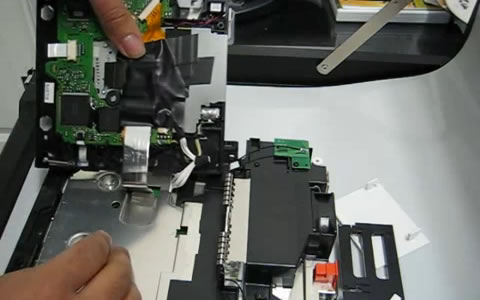

Cover the DriveKey with some electric tape so that it doesn't short circuit when you put all the parts back together.

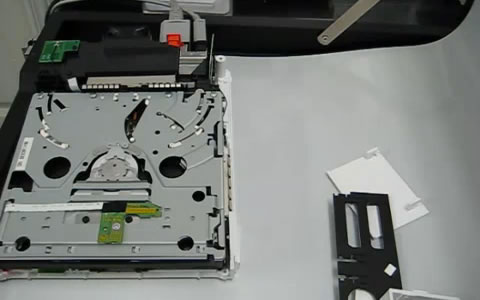

Test the console before screwing it back together so you cam be sure that it works and all cables are fully connected.
